Cooler (Competitive Price Fish Meal Cooler Machine)

Short Description:

  • Using water & air mix cooling way to cool down the fishmeal completely.
  • Continuous and homogeneous cooling process, with high automation.
  • Using impulse type dust catcher to reach best dust collecting effect.
  • Compact structure, no need concrete foundation, can change the installation foundation freely.
  • The crust, main shaft, paddle wheel, cooling pipes and impulse type dust catcher are manufactured in Mild Steel; top part, blower, inspecting windows are in Stainless Steel.

Normal Model : FSLJ-Ø1300*8700, FSLJ-Ø1500*8700, FLJ-Ø1300*8700, FLJ-Ø1500*8700, SLJ-Ø1300*8700, SLJ-Ø1500*8700

Product Detail

Product Tags

Model

Dimensionsmm

Power

kw

L

W

H

FSLJØ1300*8700

10111

2175

5162

29.5

FSLJØ1500*8700

10111

2615

5322

41

FLJØ1300*8700

10111

2175

5162

29.5

SLJØ1300*8700

10111

2175

2625

18.5

SLJØ1500*8700

10036

2615

3075

30

working principle

The fish meal comes out of the Drier at a higher temperature. After passing through the Sieve Screening and the Air-cooling Conveyor, some of the heat can be dissipated, but the temperature will still be around 50°C. Due to the violent friction and crushing effect during the crushing process, the temperature of fish meal will rise further. At the same time, because the temperature difference between fish meal and room temperature is not very big, the heat dissipation rate of fish meal will be more slow. If the fish meal is directly packaged and stacked, it is easy to generate heat phenomenon, and even spontaneous combustion will occur in serious cases, so fresh fish meal must be cooled to room temperature before storage. The role of the Cooler is to cool the fish meal at a higher temperature directly to room temperature. According to the requirements of different production lines, we are equipped with three types of coolers, which will be described below.

1.Cooler with air & water cooling
The Cooler with air & water cooling is composed of a cylindrical shell and a spiral shaft, half of the spiral shaft is welded with a spiral pipe, inside which the cooling circulating water is passed, the other half is welded with stirring wheel blades. The spiral shaft and the spiral tube on the shaft adopt hollow structure with cooling water inside. The stirring wheel blades stir the fishmeal while the impulse dust collector draws air, so that the fishmeal can fully contact with the air. After the outside natural wind enters the cooling cylinder, it is constantly drawn out by the de-dusting fan to form the cooling circulating wind, thus achieving the purpose of cooling.
The high temperature fishmeal enters the machine through the inlet and is continuously stirred and thrown under the action of the spiral tube and stirring wheel blades with cooling circulating water inside, and the heat is continuously dissipated. And at the same time, the water vapour dissipated is immediately taken away by the cooling circulating air, so that the temperature of the fishmeal is continuously reduced and pushed to the outlet under the action of the stirring wheel blades. So this cooler is to achieve the purpose of cooling fish meal by combining water cooling with air cooling.

2.Air cooler
For larger production lines, in order to achieve better cooling effect, we usually equip with a air cooler and a water cooler. The air cooler is not very different from the cooler with air & water cooling in appearance, but the air cooler is composed of a cylindrical shell, a spindle welded with stirring wheel blades and a impulse dust collector. The fishmeal is fed from the power end, and is continuously stirred and thrown by the stirring wheel blades in the process of passing through the cooler. The heat is constantly dissipated, and the water vapor is immediately taken away by the de-dusting fan. The bag structure of the impulse dust collector can ensure that the fishmeal is not sucked into the air-suction pipeline, causing the air-suction pipeline to be blocked, thus achieving a good cooling effect.

3.Water cooler
The water cooler is composed of a cylindrical shell and a spiral shaft welded with a spiral pipe. The spiral shaft and the spiral pipe on the shaft adopt hollow structure, and the cooling water is passed inside. High temperature fishmeal from the inlet into the machine, are constantly stirring and thrown under the action of spiral pipe, the fishmeal is in large contact with the spiral tube,so that the heat is continually dissipated by indirect heat exchange. At the same time, the water vapour dissipated is immediately taken away by the cooling circulating air, so that the temperature of the fishmeal is continuously reduced and pushed to the outlet under the action of the spiral pipe, achieving the purpose of cooling the fishmeal.

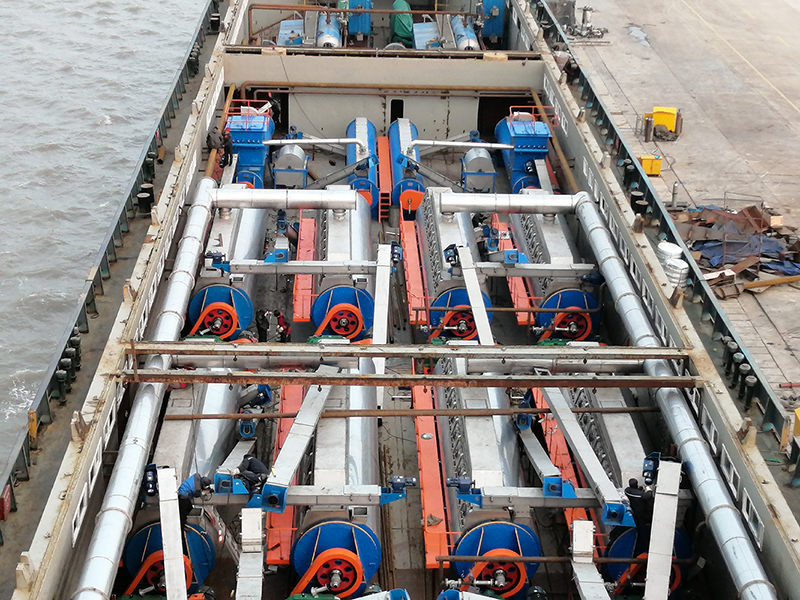

Installation collection

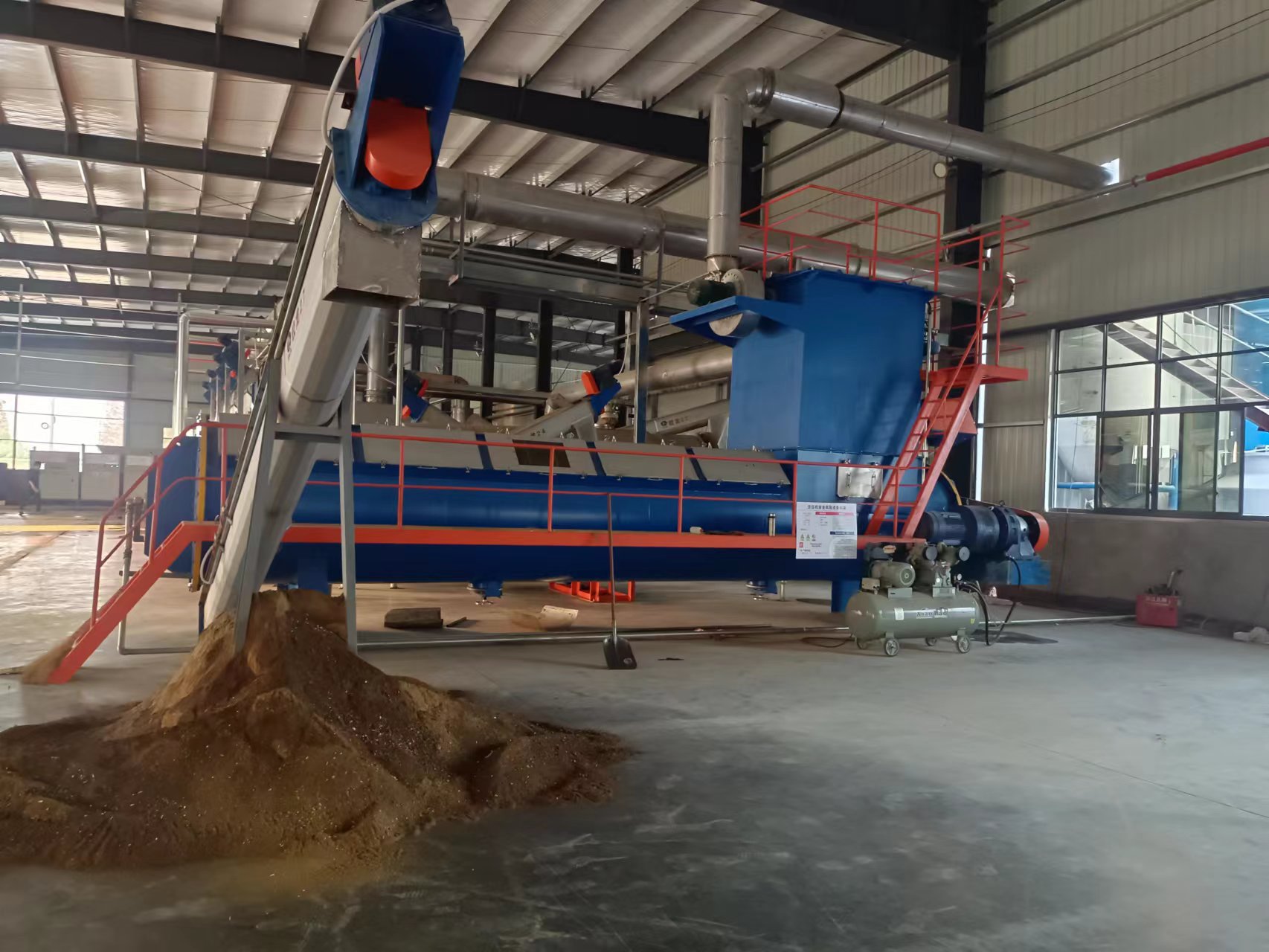

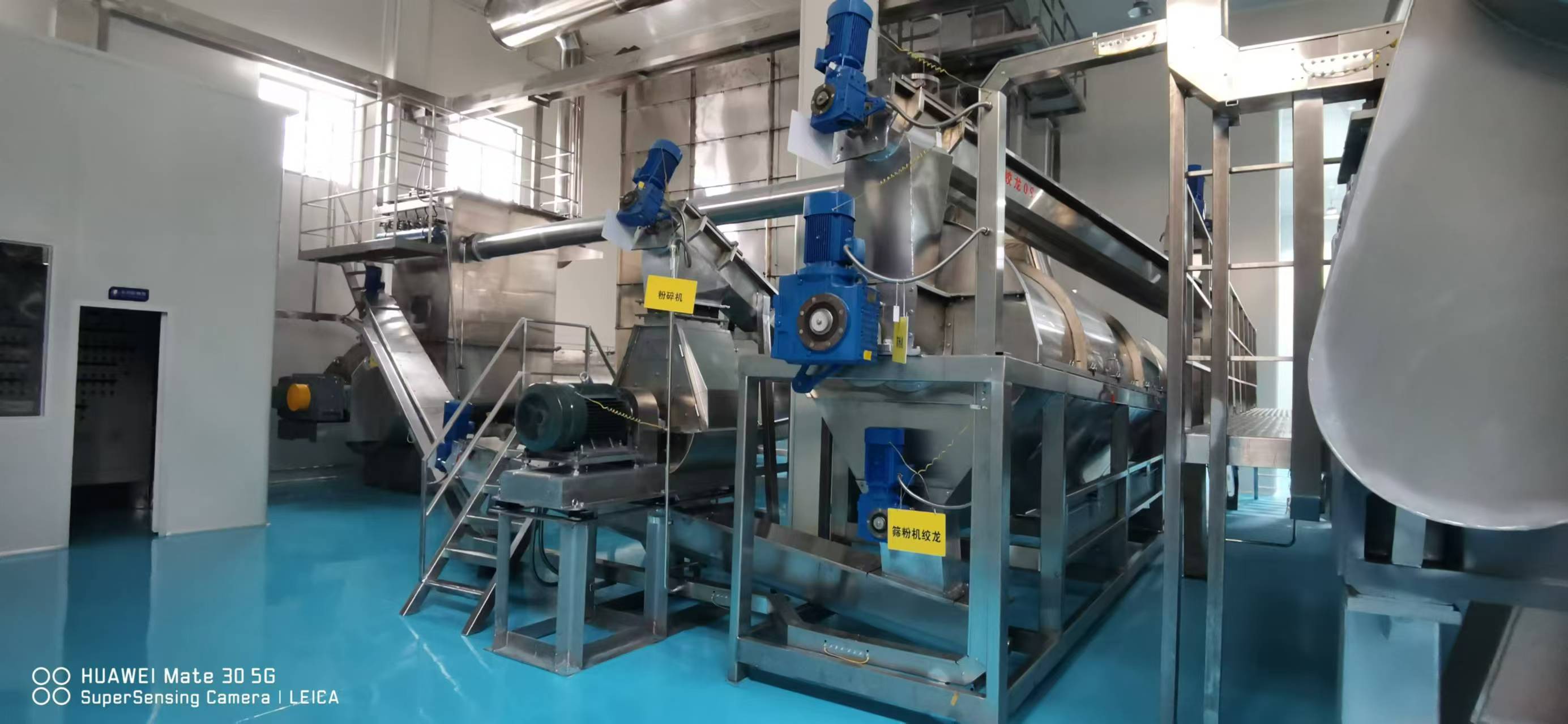

Cooler (6) Cooler (7)cooler
